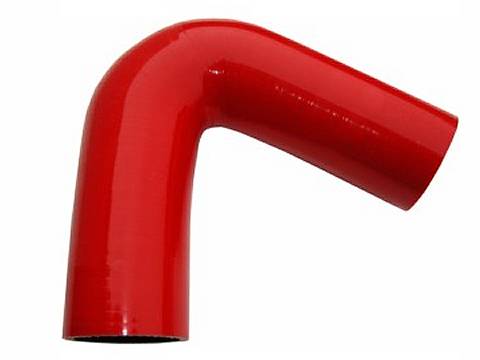

120 Degree Elbow Silicone Hose – Polyester, Nomex, Fluoro

120 degree silicone hose reinforced by polyester

120 degree elbow silicone hose reinforced by polyester fiber is frequently used in vehicles and other industries. This configuration gives the hose greater flexibility and strength against the environment. It is ideal for carrying water, air, coolant, steam, etc.

Features:

  • Ideal operating temperature: -55 °C to +170 °C.
  • UV and ozone resistant.
  • Excellent flexibility.
  • Silicone liner for isolating media.
  • Colors: black, red and blue.
Product specification
Part No Internal Diameter Leg Length plies wall
mm inch mm mm
E120-19 19 3/4 102 × 102 3 4
E120-25 25 1 102 × 102 3 4
E120-32 32 1-1/4 102 × 102 3 4
E120-35 35 1-3/8 102 × 102 3 4
E120-38 38 1-1/2 102 × 102 3 4
E120-51 51 2 102 × 102 4 5
E120-63 63 2-1/2 102 × 102 4 5
E120-76 76 3 102 × 102 4 5
