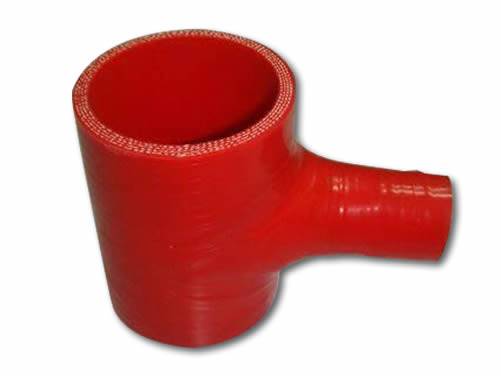

T Silicone Hose - Polyester Reinforced

T silicone connector | T silicone hose, 4-ply polyester reinforced
T silicone hose connecting pipes with different specifications

Compared with common rubber hose, T silicone hose with polyester reinforcement can withstand extreme temperatures and high pressure. It still maintains its good properties within -50 °C to +170 °C.

T connector features two different inner diameters - the main body and the take-off. This structure makes it an effective transition of different sizes of pipes. It is widely used in pump valve fitments and breather hose connectors.

Features:

  • Working temperature: -50 °C to +170 °C.
  • UV and ozone resistant.
  • Polyester reinforced.
  • Color: black, red, blue.

Applications:
It is mainly used as connector of dump value and breather hose.

Remarks:
T-piece silicone connector is not suitable for contacting oils & fuel.
Nomex reinforced or Fluoro lined just for special order.
Any bespoke size can be made.

Technical specifications
Part No. Length Plies Wall Main Body ID Take-Off ID
mm inch mm mm
T32-12 150 6 3 4 32 12
T38-16 150 6 3 4 38 16
T38-25 150 6 3 4 38 25
T51-25 150 6 4 5 51 25
T60-25 150 6 4 5 60 25
T63-25 150 6 4 5 63 25
T70-25 150 6 4 5 70 25
T76-25 150 6 4 5 76 25
