Straight Silicone Hose, Polyester, Nomex or Fluoro

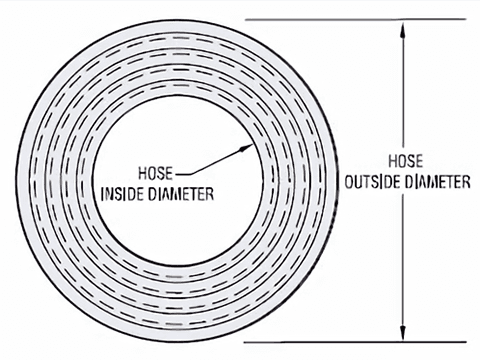

A drawing shows the outer diameter and inner diameter of silicone hose

Owing to high quality raw materials and fabrics, our straight silicone hoses with small diameters enjoy excellent flexibility and can make various bend radiuses. Diameters& from 6 mm& to 19 mm are frequently used for water connecting, breathers, heater matrix, etc. Bigger diameters are allowed to cut to any lengths. They are ideal for coolant, intercooler, air intake, etc.

For different reinforcements, straight silicone hoses are grouped into& three types: polyester reinforced, Nomex reinforced for high temperature and Fluoro lined for carrying fuel and oils.

Polyester reinforced - Straight silicone hose

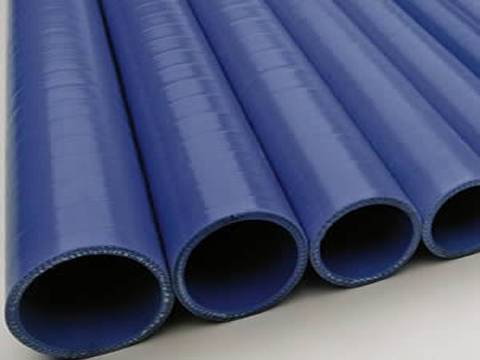

Straight silicone hose reinforced by polyester fabrics is very effective for general applications, including home, automobile and industry. It is widely used for carrying water, air, coolant, steam, etc.

Features:

  • Ideal operating temperature: -55 °C to +170 °C .
  • Polyester reinforcement for protection against environment.
  • High flexibility.
  • UV and ozone resistant.
  • Resistant to electrochemical degradation.
  • Silicone liner for isolating media.

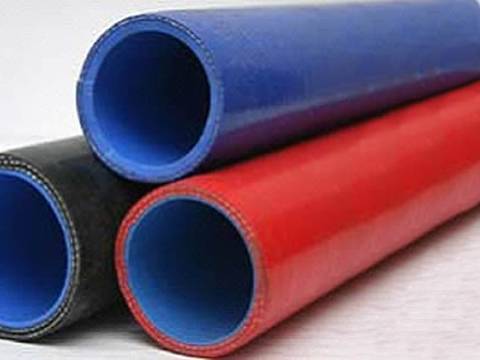

  • Color: black, red, blue.
Product specification
Part No. Internal Diameter Length Plies Wall
mm inch mm inch mm
ML6 6 1/4 76 3 3 4
ML8 8 5/16 76 3 3 4
ML10 10 3/8 76 3 3 4
ML13 13 1/2 76 3 3 4
ML16 16 5/8 76 3 3 4
ML19 19 3/4 76 3 3 4
ML22 22 7/8 76 3 3 4
ML25 25 1 76 3 3 4
ML28 28 1-1/8 76 3 3 4
ML32 32 1-1/4 76 3 3 4
ML35 35 1-3/8 76 3 3 4
ML38 38 1-1/2 76 3 3 4
ML41 41 1-5/8 76 3 3 4
ML44 44 1-3/4 76 3 3 4
ML51 51 2 76 3 4 5
ML54 54 2-1/8 76 3 4 5
ML57 57 2-1/4 76 3 4 5
ML60 60 2-3/8 76 3 4 5
ML63 63 2-1/2 76 3 4 5
ML67 67 2-5/8 76 3 4 5
ML70 70 2-3/4 76 3 4 5
ML76 76 3 76 3 4 5
ML80 80 3-1/8 76 3 4 5
ML83 83 3-1/4 76 3 4 5
ML89 89 3-1/2 76 3 4 5
ML95 95 3-3/4 76 3 4 5
ML102 102 4 76 3 5 6
ML127 127 5 76 3 5 6
ML152 152 6 76 3 5 6

Note: Length of 2 m& and 4 m for a continuous run with no joins are also in stock.

Nomex reinforced (High Temp) - Straight silicone hose

Designed for high temperature and high pressure applications, owing to its good performances against heat, chemicals and radiation, Nomex reinforced straight silicone hose is ideal for turbo application.

Features:

  • Working temperature: –50 °C to +250 °C .
  • Nomex reinforced 3 - 5 plies.
  • UV and ozone resistant.
  • Silicone hose creates a barrier to isolate media.
  • Color: black.

Remark: Nomex reinforced silicone hose is& not suitable for fuel & oils.

Product specification
Part No. Internal Diameter Length Plies Wall
mm inch mm inch mm
ML6 HT 6 1/4 76 3 3 4
ML8 HT 8 5/16 76 3 3 4
ML10 HT 10 3/8 76 3 3 4
ML13 HT 13 1/2 76 3 3 4
ML16 HT 16 5/8 76 3 3 4
ML19 HT 19 3/4 76 3 3 4
ML22 HT 22 7/8 76 3 3 4
ML25 HT 25 1 76 3 3 4
ML28 HT 28 1-1/8 76 3 3 4
ML32 HT 32 1-1/4 76 3 3 4
ML35 HT 35 1-3/8 76 3 3 4
ML38 HT 38 1-1/2 76 3 3 4
ML51 HT 51 2 76 3 4 5
ML60 HT 60 2-3/8 76 3 4 5
ML63 HT 63 2-1/2 76 3 4 5
ML70 HT 70 2-3/4 76 3 4 5
ML76 HT 76 3 76 3 4 5
ML102 HT 102 4 76 3 5 6

Note: Lengths of 2 and 4 meters for a continuous run with no joins are also in stock.

Fluoro lined Straight silicone hose

Fluoro lined silicone not only has the advantages of & low thermal conductivity, low chemical reactivity and hermal stability, but also low hydrocarbon permeation. It is a good material for contacting with oils. It is often found in turbocharger and intercooler hoses which meet Euro 3 and 4 emission levels.

Features:

  • Working temperature: –55 °C to 250 °C.
  • Fluoro lined for contacting with oils.
  • Polyester fiber reinforced 3 to 4 plies.
  • Especially used in turbocharger and intercooler hoses.
  • Low permeation.
  • Colors: black, red, blue.

Remark: Fluoro lined silicone hoses are available for contacting with oils or oil mists.

Product data
Part No. Internal Diameter Length Plies Wall
mm inch mm inch mm
ML6 FL 6 1/4 76 3 3 4
ML8 FL 8 5/16 76 3 3 4
ML10 FL 10 3/8 76 3 3 4
ML13 FL 13 1/2 76 3 3 4
ML16 FL 16 5/8 76 3 3 4
ML19 FL 19 3/4 76 3 3 4
ML22 FL 22 7/8 76 3 3 4
ML25 FL 25 1 76 3 3 4
ML28 FL 28 1-1/8 76 3 3 4
ML32 FL 32 1-1/4 76 3 3 4
ML35 FL 35 1-3/8 76 3 3 4
ML38 FL 38 1-1/2 76 3 3 4
ML51 FL 51 2 76 3 4 5

Note: Lengths of 2 and 4 meters for a continuous run with no joins are also in stock.
