45 Degree Elbow Silicone Hose – Polyester, Nomex, Fluoro

45 degree elbow silicone hose - polyester reinforced

Knitted polyester reinforced silicone hoses are well suitable for daily use to carry water and air within the temperature of -50 °C to +170 °C. This silicone hose, reinforced by 3 to 4 plies of polyester fiber is ideal for medium duty.

Technical Specification:

  • Recommended working temperature: -50 °C to +170 °C.
  • Reinforcement: 3 to 4 plies polyester fabric reinforced configuration.
  • UV and ozone resistant.
  • Excellent flexibility.
  • Low thermal conductivity.
  • High thermal stability.
  • Low chemical reactivity.
  • Colors available: black, red, blue.

Applications:
Water, air, coolant and small amount of oil mist.

Remark: Polyester reinforced silicone hose is not available for carrying oil.

Product description:

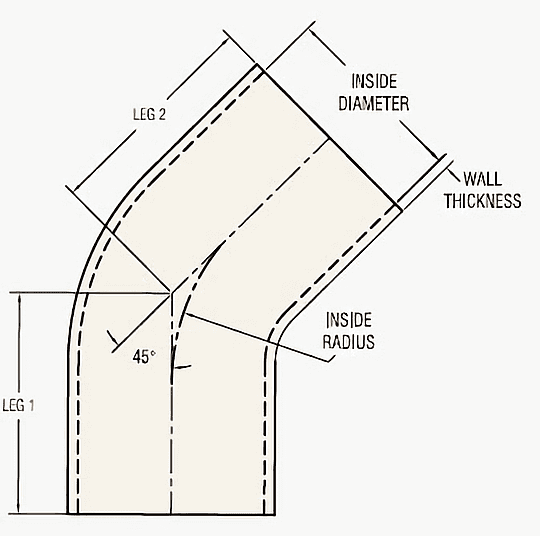

Part No. Bore size Leg length Plies Wall
mm mm mm
E45-065 6.5 63 3 3.5
E45-08 8 63 3 3.5
E45-095 9.5 63 3 3.5
E45-11 11 63 3 3.5
E45-13 13 100 3 3.5
E45-16 16 100 3 3.5
E45-19 19 100 3 3.5
E45-22 22 100 3 3.5
E45-25 25 100 3 3.5
E45-28 28 100 3 3.5
E45-30 30 100 3 3.5
E45-32 32 100 3 3.5
E45-35 35 100 3 3.5
E45-38 38 100 3 3.5
E45-41 41 100 3 3.5
E45-45 45 100 3 3.5
E45-48 48 100 3 3.5
E45-51 51 100 4 5
E45-54 54 100 4 5
E45-57 57 100 4 5
E45-60 60 125 4 5
E45-63 63 125 4 5
E45-70 70 125 4 5
E45-76 76 125 4 5
E45-80 80 125 4 5
E45-83 83 125 4 5
E45-89 89 125 5 6
E45-102 102 125 5 6

Note: Bespoke lengths, diameters, quantities can be provided for special orders.

45 degree elbow silicone hose - Nomex reinforced

Nomex, with its excellent flame-resistance property, is an optimum material for improving the safety performance and durability of automotive components for vehicles, including passenger cars, light trucks and professional race cars.
45 degree silicone hose, made of 3 to 5 piles of Nomex reinforcements, is strongly recommended for turbo application, where the extreme temperature can reach 220 °C。

Remarks: Nomex reinforced silicone hose is not available for carrying oil.
Only available in black and special order.

45 degree elbow silicone hose
Part No. Internal Diameter Leg Length Plies Wall
mm inch mm mm
E45-13 HT 13 1/2 102 × 102 3 4
E45-16 HT 16 5/8 102 × 102 3 4
E45-19 HT 19 3/4 102 × 102 3 4
E45-25 HT 25 1 102 × 102 3 4
E45-32 HT 32 1-1/4 102 × 102 3 4
E45-35 HT 35 1-3/8 102 × 102 3 4
E45-38 HT 38 1-1/2 102 × 102 3 4
E45-51 HT 51 2 102 × 102 4 5
E45-60 HT 61 2-3/8 102 × 102 4 5
E45-63 HT 63 2-1/2 102 × 102 4 5
E45-70 HT 70 2-3/4 102 × 102 4 5
E45-76 HT 76 3 102 × 102 4 5

Note: Bespoke lengths, diameters, quantities can be provided for special orders.

45 degree silicone hose - Fluoro lined

Compared with polyester fiber or Nomex reinforced silicone hoses, Fluoro lined silicone hoses can be exposed to excessive oil mist or oils. It is widely used in turbocharger and intercooler hoses, especially for the usage of engines that should meet strict emission levels.
This 45 degree Fluoro lined silicone hose uses a high concentration Fluoro at 80/20 and 1mm liner. However, a thinner liner produced by other manufacturers can't reach expected performance.

Features:

  • Working temperature: –55 °C to 250 °C.
  • Fluoro lined for contacting with oils.
  • Especially used in turbocharger and intercooler hoses.
  • Low permeation.
  • Available in black, red, blue.

Remark: Fluoro lined silicone hoses are available for contacting with oils or oil mists.

45 degree elbow silicone hose - Fluoro lined
Part No. Internal Diameter Leg Length Plies Wall
mm inch mm mm
E45-8 FL 8 5/16 102 × 102 3 4
E45-10 FL 10 3/8 102 × 102 3 4
E45-13 FL 13 1/2 102 × 102 3 4
E45-16 FL 16 5/8 102 × 102 3 4
E45-19 FL 19 3/4 102 × 102 3 4
E45-22 FL 22 7/8 102 × 102 3 4
E45-25 FL 25 1 102 × 102 3 4
E45-28 FL 28 1-1/8 102 × 102 3 4
E45-32 FL 32 1-1/4 102 × 102 3 4
E45-35 FL 35 1-3/8 102 × 102 3 4
E45-38 FL 38 1-1/2 102 × 102 3 4
E45-44 FL 44 1-3/4 102 × 102 3 4
E45-51 FL 51 2 102 × 102 4 5

Note: Bespoke lengths, diameters, quantities can be provided for special orders.

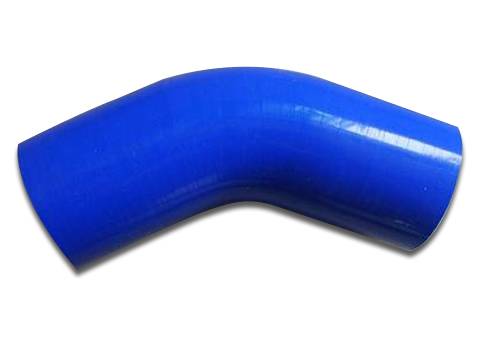

45 degree elbow silicone hose - polyester reinforced
45 degree elbow silicone hose, Fluoro lined for oils and fuel

45° silicone hose, 4-ply polyester fabric 45 degree silicone hose braided by polyester and lined by Fluoro.
