180 Degree Elbow Silicone Hose – Polyester or Nomex

180 degree elbow silicone hoses or U hoses are divided into two types for their different reinforcements: polyester and Nomex. Each of them has unique characteristics to meet your special applications.

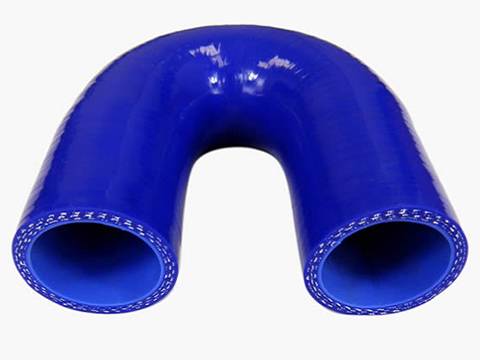

Polyester reinforced - 180 degree elbow silicone hose

Polyester reinforced - 180 degree elbow silicone hose

Silicone hose, reinforced by polyester, is very effective for carrying air, water, coolant, or sprayed by small amount of oil mist. It is often found in vehicle cooling systems like cold sides of intercooler air hoses and general industrial applications within the temperature of -50 °C to +170 °C.

Features:

  • Ideal working temperature: -50 °C to +170 °C.
  • 3-5 ply polyester reinforcement.
  • Silicone liner used as a barrier to isolate media.
  • UV and ozone resistant.
  • Colors: black, red, blue.

Remark: Polyester reinforced silicone hose is NOT available for carrying oil.

Product data:
Part No. Internal Diameter Leg Length Plies Wall
mm inch mm mm
E180-8 8 5/16 102 × 102 3 4
E180-10 10 3/8 102 × 102 3 4
E180-13 13 1/2 102 × 102 3 4
E180-16 16 5/8 102 × 102 3 4
E180-19 19 3/4 102 × 102 3 4
E180-25 25 1 102 × 102 3 4
E180-32 32 1-1/4 102 × 102 3 4
E180-35 35 1-3/8 102 × 102 3 4
E180-38 38 1-1/2 102 × 102 3 4
E180-44 44 1-3/4 102 × 102 4 5
E180-51 51 2 102 × 102 4 5
E180-63 63 2-1/2 102 × 102 4 5
E180-76 76 3 102 × 102 4 5

Nomex reinforced for high temperature - 180 degree elbow silicone hose

180°elbow silicone hose, 3-ply polyester reinforced

Nomex is a flame-resistant, high thermal and chemical resistant fiber. At extraordinarily high temperatures, it still maintains its properties without excessive softness. It is especially suitable for turbo boost hoses, hot side intercooler hoses and EGR connectors.

Features

  • Working temperature: –50 °C to +250 °C.
  • Nomex reinforced 3 - 5 ply.
  • UV and ozone resistant.
  • Silicone hose creates a barrier to isolate media.
Product specification:
Part No. Internal Diameter Leg Length Plies Wall Color
mm inch mm mm
E180-32HT 32 1-1/4 102 × 102 3 4 Black
E180-35HT 35 1-3/8 102 × 102 3 4 Black
E180-38HT 38 1-1/2 102 × 102 3 4 Black
E180-51HT 51 2 102 × 102 4 5 Black
E180-63HT 63 2-1/2 102 × 102 4 5 Black
