90 Degree Elbow Silicone Hose – Polyester, Nomex, Fluoro

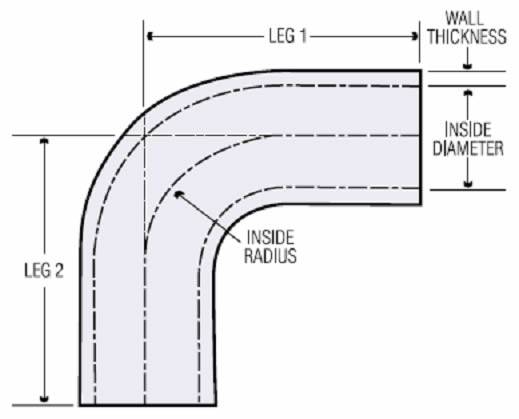

90 degree elbow silicone hose details; leg1 = leg2

Polyester reinforced - 90 degree elbow silicone hose

90 degree elbow silicone hose, or right-angle hose is designed with 3 to 5 plies of knitted polyester fabrics for everyday usage. Polyester reinforced configuration gives the silicone hose greater strength and flexibility. It is widely used in most engines for carrying water, air, coolant, steam, etc.

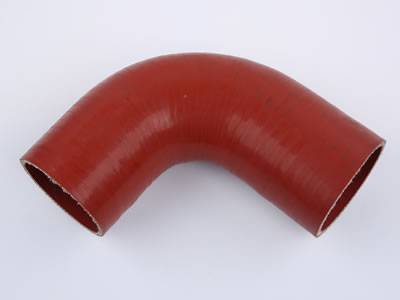

There is one red 90 degree elbow silicone hose displayed.
90 degree elbow silicone hose in red.

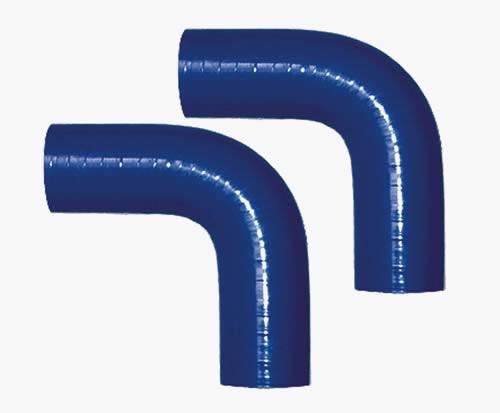

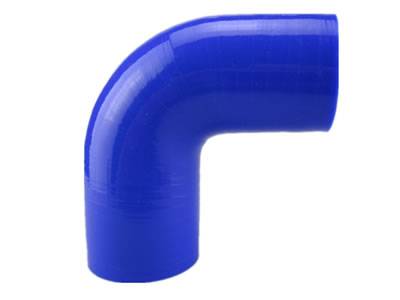

There is one section of blue 90 degree elbow silicone hose.
90 degree elbow silicone hose in blue.

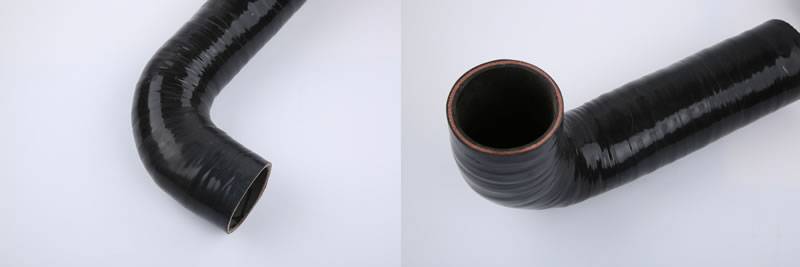

From two angles, one black 90 degree elbow silicone hose is displayed on the picture.
90 degree elbow silicone hose in black.

Features:

  • Ideal operating temperature: -55 °C to +170 °C.
  • UV and ozone resistant.
  • Silicone liner for isolating media.
  • Color: black, red and blue.
90 degree elbow silicone hose - polyester reinforced
Part No. Bore size Leg length Plies Wall
mm mm mm
E90-065 6.5 63 3 3.5
E90-08 8 63 3 3.5
E90-095 9.5 63 3 3.5
E90-11 11 63 3 3.5
E90-13 13 100 3 3.5
E90-16 16 100 3 3.5
E90-19 19 100 3 3.5
E90-22 22 100 3 3.5
E90-25 25 100 3 3.5
E90-28 28 100 3 3.5
E90-30 30 100 3 3.5
E90-32 32 100 3 3.5
E90-35 35 100 3 3.5
E90-38 38 100 3 3.5
E90-41 41 100 3 3.5
E90-45 45 100 3 3.5
E90-48 48 100 3 3.5
E90-51 51 100 4 5
E90-54 54 100 4 5
E90-57 57 100 4 5
E90-60 60 125 4 5
E90-63 63 125 4 5
E90-70 70 125 4 5
E90-76 76 125 4 5
E90-80 80 125 4 5
E90-83 83 125 4 5
E90-89 89 125 5 6
E90-102 102 125 5 6

Remark: Polyester reinforced silicone hoses are not available for fuel & oils.

Nomex reinforced - 90 degree elbow silicone hose

Nomex has excellent thermal, chemical and radiation resistance and it is widely used in applications where high temperature and high pressure are needed, including radiator hoses, turbocharger hoses, etc.

Features:

  • Suitable working temperature: –50 °C to +250 °C.
  • Nomex reinforced 3 - 5 plies.
  • UV and ozone resistant.
  • Silicone hose creates a barrier to isolate media.
  • Color: black.
Part No. Internal Diameter Leg Length Plies Wall
mm inch mm mm
E90-13 HT 13 1/2 102 × 102 3 4
E90-16 HT 16 5/8 102 × 102 3 4
E90-19 HT 19 3/4 102 × 102 3 4
E90-25 HT 25 1 102 × 102 3 4
E90-32 HT 32 1-1/4 102 × 102 3 4
E90-35 HT 35 1-3/8 102 × 102 3 4
E90-38 HT 38 1-1/2 102 × 102 3 4
E90-51 HT 51 2 102 × 102 4 5
E90-60 HT 60 2-3/8 102 × 102 4 5
E90-63 HT 63 2-1/2 102 × 102 4 5
E90-70 HT 70 2-3/4 102 × 102 4 5
E90-76 HT 76 3 102 × 102 4 5
E90-102 HT 102 4 125 × 125 5 6

Notes:
Nomex reinforced silicone hoses are not suitable for oils & fuels.

Fluoro lined for oil resistance - 90 degree elbow silicone hose

In contrast to polyester fiber and Nomex reinforced silicone hoses, Fluoro lined silicone hose has some unique properties. On one hand, it is not permeable to hydrocarbons and it is often used in vehicle applications to prevent oil seepage through the hose wall. On the other hand, it is suitable for carrying oils and fuel.

Features:

  • Working temperature: –55 °C to 250 °C.
  • Fluoro lined for contacting with oils.
  • Polyester fiber reinforced 3 to 4 plies.
  • Especially used in turbocharger and intercooler hoses.
  • Low permeation.
  • Color: black, red and blue.

Remark: Fluoro lined silicone hoses are available for contacting with oils or oil mists.

Part No. Internal Diameter Leg Length Plies Wall
mm inch mm mm
E90-8 FL 8 5/16 102 × 102 3 4
E90-10 FL 10 3/8 102 × 102 3 4
E90-13 FL 13 1/2 102 × 102 3 4
E90-16 FL 16 5/8 102 × 102 3 4
E90-19 FL 19 3/4 102 × 102 3 4
E90-22 FL 22 7/8 102 × 102 3 4
E90-25 FL 25 1 102 × 102 3 4
E90-28 FL 28 1-1/8 102 × 102 3 4
E90-32 FL 32 1-1/4 102 × 102 3 4
E90-35 FL 35 1-3/8 102 × 102 3 4
E90-38 FL 38 1-1/2 102 × 102 3 4
E90-44 FL 44 1-3/4 102 × 102 3 4
E90-51 FL 51 2 102 × 102 4 5
90 degree elbow silicone hose, Fluoro lined for oils and fuel
90° elbow silicone hose lined by Fluoro for conveying oils
