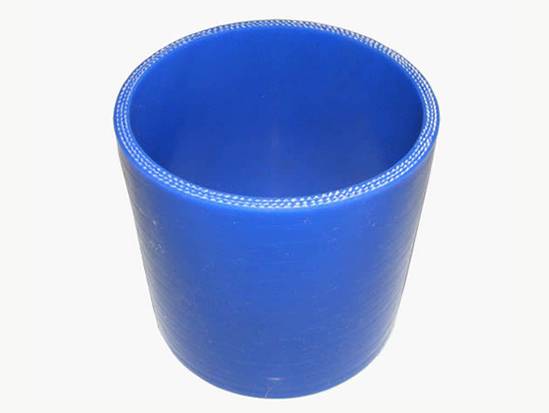

Straight Silicone Hose – Premium Polyester Reinforced

Straight silicone hose, 3-ply polyester reinforcement

Straight Silicone Coupling Hose is made of high flame-resistance silicone rubber reinforced by 3 to 5 plies premium polyester fabrics. This straight coupling is engineered for extreme temperatures and various pressure ranges. From -55 °C to +170 °C , silicone coupling operates well without excessive softeness at high temperatures or becoming stiff and rigid at lower temperatures.
Hose coupling is often used for joining two rigid pipes to prevent connections between them coming apart or having your hard pipes or other related equipment broken.

Application: Straight silicone hose can be found in high performance racing vehicles, commercial truck and bus, marine, agricultural and off highway vehicles, turbo diesel and other manufacturing industries.

Notes: Only polyester reinforced are provided and special orders for Nomex reinforced or Fluoro lined. Any customized lengths and diameters can be served. Black, red and blue are available.

Technical specification
Part No. Internal Diameter Length Plies Wall
mm inch mm mm
CP19-76 19 3/4 76 3 4
CP22-76 22 7/8 76 3 4
CP25-76 25 1 76 3 4
CP28-76 28 1-1/8 76 3 4
CP32-76 32 1-1/4 76 3 4
CP35-76 35 1-3/8 76 3 4
CP38-76 38 1-1/2 76 3 4
CP41-76 41 1-5/8 76 3 4
CP44-76 44 1-3/4 76 3 4
CP48-76 48 1-7/8 76 3 4
CP51-76 51 2 76 4 5
CP54-76 54 2-1/8 76 4 5
CP57-76 57 2-1/4 76 4 5
CP60-76 61 2-3/8 76 4 5
CP63-76 63 2-1/2 76 4 5
CP67-76 67 2-5/8 76 4 5
CP70-76 70 2-3/4 76 4 5
CP76-76 76 3 76 4 5
CP80-76 80 3-1/8 76 4 5
CP83-76 83 3-1/4 76 4 5
CP89-76 89 3-1/2 76 4 5
CP102-100 103 4 100 5 6
CP127-100 127 5 100 5 6
CP152-100 152 6 100 5 6

Remarks
Silicone hose is not compatible with fuel or oil.
Silicone hose is compatible with water and anti-freeze fluids such as coolant.
