Flexible Heat Resistant Silicone Tubing for Extremely High Temperature

Heat resisting silicone tubing is made up of high quality silicone raw material with extreme temperature resistance, which is mainly used in special environment, such as high temperature environment or high pressure environment.

Diameters of heat resistant silicone tubing are ranges from 6 mm to 19 mm, which are frequently used for water connecting, breathers, heater matrix, etc. larger diameters are allowed to cut to any lengths. They are ideal for coolant, intercooler, air intake, etc.

A red color heat resistant silicone tubing standing on gray background.
HRS-01: Standing heat resistant silicone tubing.
A red color heat resistant silicone tubing lying on gray background.
HRS-02: Lying heat resistant silicone tubing.

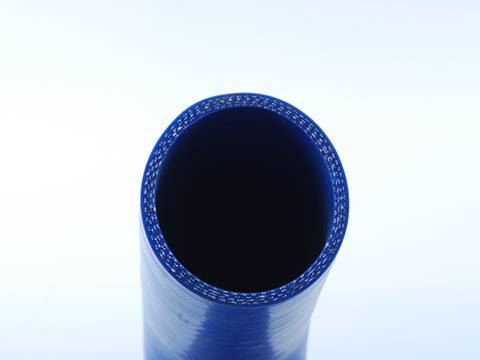

A picture shows the detail of cross section of blue heat resistant silicone tubing.
HRS-03: Cross section of heat resistant silicone hose.
A hand is holding a rolls of heat resistant silicone hose and a roll is packed with plastic film.
HRS-04: Heat resistant silicone hose package.

According to different reinforcements, straight silicone hoses are grouped into& three types:

  • Polyester reinforced
  • Nomex reinforced for high temperature
  • Fluoro lined for carrying fuel and oils

Features

  • Ideal operating temperature: -55 °C to +300 °C.
  • High flexibility.
  • UV and ozone resistant.
  • Resistant to electrochemical degradation.
  • Silicone liner for isolating media.
  • Color: black, red, blue.

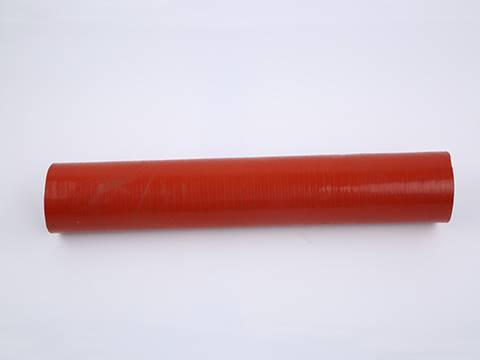

A red color heat resistant silicone hose on gray background.
HRS-05: Red color heat resisting silicone tubing.

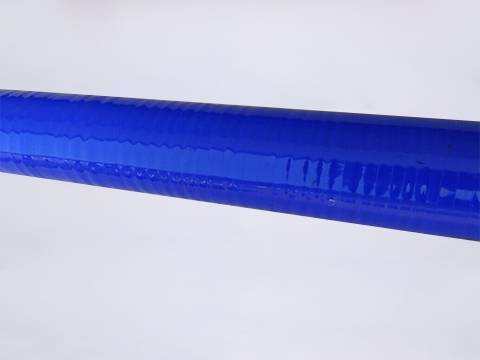

A blue color heat resistant silicone hose on gray background.
HRS-06: Blue color heat resisting silicone tubing.
Specification – Straight Silicone Hose
Item I.D. O.D. Thickness Burst Pressure Length
inch mm mm mm MPa mm
HRSH-01 1/4 6 16 5 3.5 1000
HRSH-02 3/8 10 20 5 2.9 1000
HRSH-03 1/2 13 23 5 2.7 1000
HRSH-04 5/8 16 26 5 2.4 1000
HRSH-05 3/4 19 29 5 2.2 1000
HRSH-06 7/8 22 32 5 2.1 1000
HRSH-07 1 25 35 5 2 1000
HRSH-08 1-1/2 38 48 5 1.5 1000
HRSH-09 2 51 61 5 1.2 1000
HRSH-10 2-1/2 63 73 5 1 1000
HRSH-11 3 76 86 5 0.8 1000
HRSH-12 3-1/2 89 99 5 0.6 1000
HRSH-13 4 102 112 5 0.5 1000
