Food Grade Silicone Hose for Commercial or Industrial Use

Food grade silicone tubing, also called food grade silicone hose, is made of imported raw material with scientific production technology by batch method. Compared with traditional vulcanized DCBP silicone rubber, it has more advantages:

  • High transparency, odorless.
  • Good elasticity and no deformation.
  • Perfect tearing strength and electronic performance.

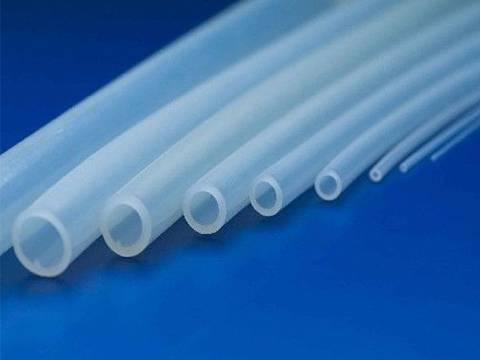

Nine different diameters of food grade silicone hose on blue background.
FGS-01: Silicone hose in different diameter.
Two different thicknesses of food grade silicone hose on blue background.
FGS-02: Silicone hose in different thickness.

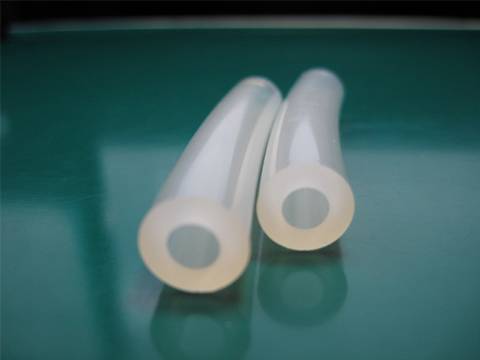

Two food grade silicone hose on the table with transparent surface.
FGS-03: Silicone hose has transparent surface.
A coil of food grade silicone hose is twisted together.
FGS-04: Silicone hose has flexible structure.

Performance

  • Material: 100% silicone, harmless, heat-resisting, cold-resisting.
  • Design: new concept, popular and unify design, OEM is welcome.
  • Shape and size: according to customers’ requirements.
  • Temperature range: -60 °C to +300 °C (-76 °F to +572 °F).
  • Min. thin part: 0.5 mm (0.02").
  • Hardness: 45 to 80.
Specification – Food Grade Silicone Hose
Item I.D. O.D. Min. Bending Radius Working Pressure Burst Pressure
inch mm mm mm psi psi
FGST-01 1/8 3.18 9 12.7 200 600
FGST-02 1/6 4.23 10 19.05 175 527
FGST-03 3/16 4.76 11 25.4 170 509
FGST-04 1/4 6.35 13.2 38.1 135 405
FGST-05 5/16 7.94 15 44.5 111 335
FGST-06 3/8 9.53 16 57.15 101 305
FGST-07 1/2 12.7 20.3 70 82 248
FGST-08 5/8 15.88 24.5 82.55 62 197
FGST-09 3/4 19.05 28 95.25 53 161
FGST-10 1 25.4 34.5 157 43 131
FGST-11 1-1/4 31.75 40.8 204 33 100

Application

  • Small household appliances, such as coffee maker, pulp machines, water heaters etc.
  • Electronic.
  • Automotive.
  • Medical products.
